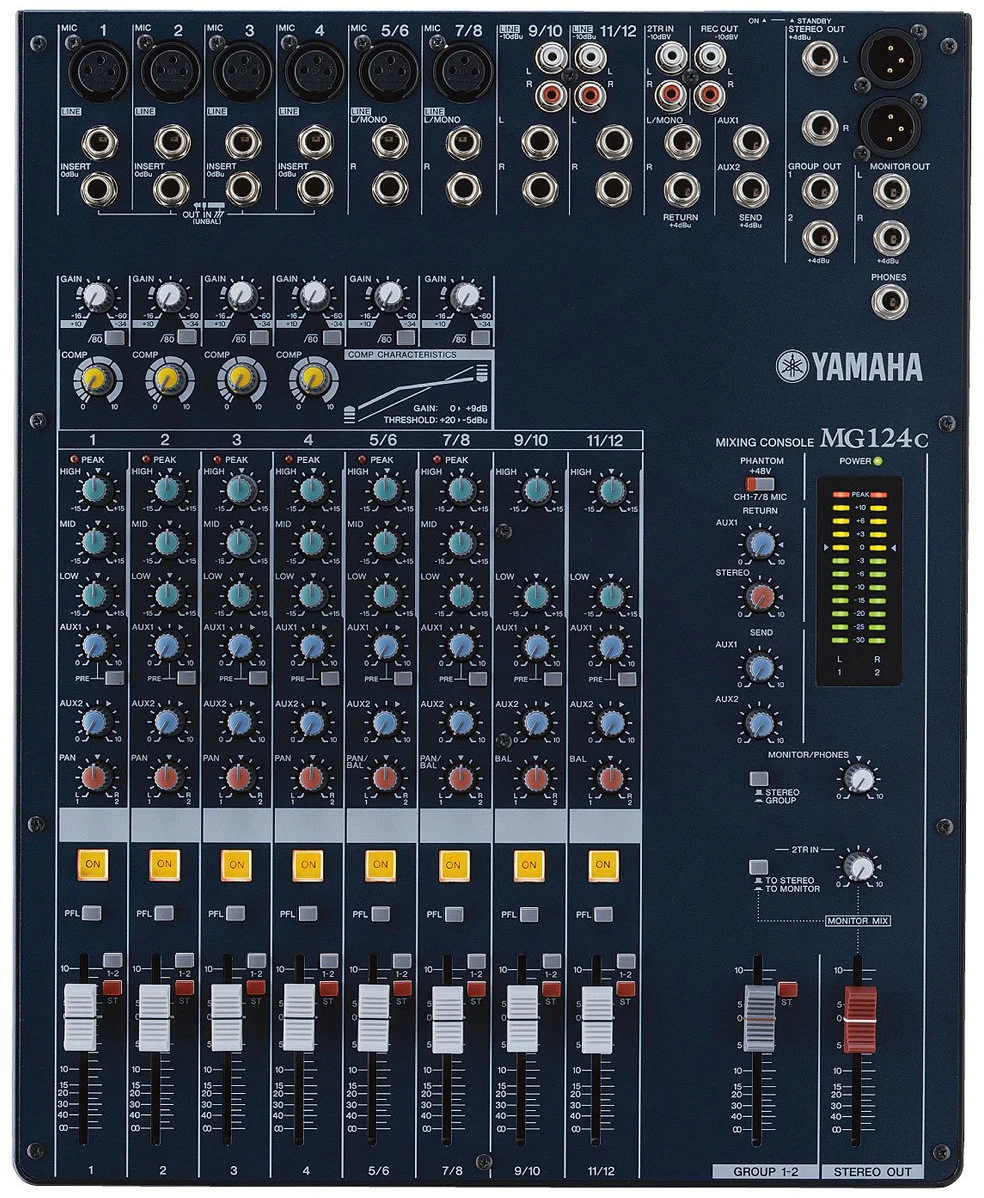

The Yamaha MG124C is a compact 12-channel analog mixer designed for various audio applications. It offers four mono microphone/line inputs and four stereo line inputs, with two stereo inputs also functioning as mono microphone inputs, allowing up to six simultaneous mic connections. Each mono channel features a built-in single-knob compressor for easy dynamic control, and a 3-band EQ with sweepable mids for precise tonal shaping. The mixer includes two auxiliary sends for external effects integration and a stereo auxiliary return. Its intuitive layout and robust construction make the MG124C suitable for live sound, studio recording, and fixed installations.​
Key Specifications:
- Channels: 12 total (4 mono mic/line, 4 stereo line)​
- Mic Preamps: 6 with switchable +48V phantom power​
- Compressors: Single-knob on channels 1–4​
- EQ: 3-band with sweepable mids on mono channels; 2-band on stereo channels​
- Aux Sends: 2 (one switchable pre/post-fader)​
- Dimensions (W x H x D): 346.2 mm x 86.1 mm x 436.6 mm​
- Weight: 3.2 kg​
